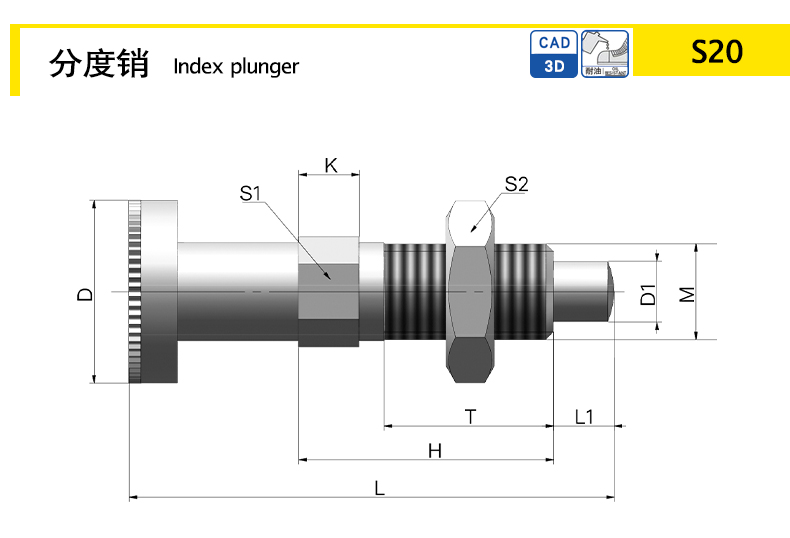

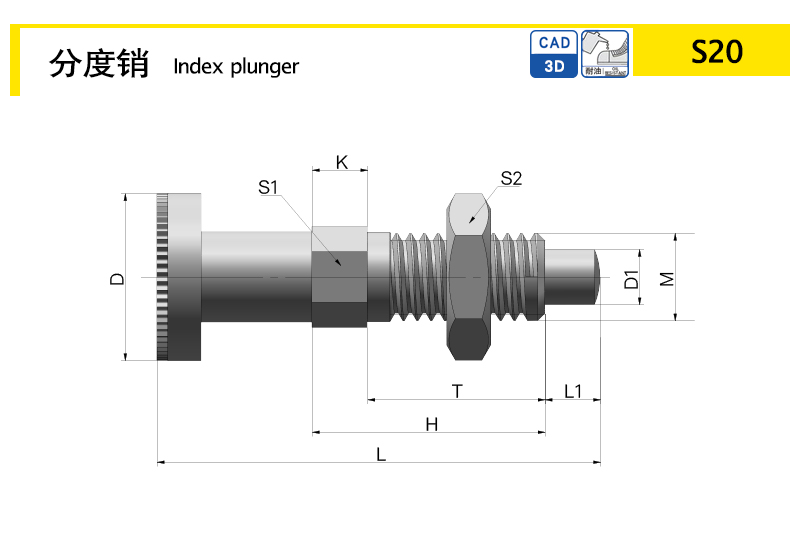

| 型号 | 材质  | D1 | D | L1 | T | M | K | 高度H | S1 | 最大载荷(N) | 重量(g) | 3D图纸 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 点击勾选 | 重置 | ||||||||||||||
| S20B-6 | SUS304 | 6 | 18 | 18 | 17 | M10 | 7.5 | 27.5 | 10 | 22 | 1 | ||||
| S20-6-S | 碳钢 | 6 | 18 | 18 | 17 | M10 | 7.5 | 27.5 | 10 | 22 | 1 | ||||
| S20-6-B | 碳钢 | 6 | 18 | 18 | 17 | M10 | 7.5 | 27.5 | 10 | 22 | 1 | ||||
| S20B-5 | SUS304 | 5 | 16 | 16 | 13.5 | M8 | 6 | 22 | 8 | 25 | 1 |
 |
|||
| S20-5-B | 碳钢 | 5 | 16 | 16 | 13.5 | M8 | 6 | 22 | 8 | 25 | 1 |
|
|||
| S20-5-S | 碳钢 | 5 | 16 | 16 | 13.5 | M8 | 6 | 22 | 8 | 25 | 1 |
|
|||
| S20-4-B | 碳钢 | 4 | 12 | 12 | 10 | M6 | 4.5 | 16.5 | 6 | 13 | 1 | ||||
| S20-4-S | 碳钢 | 4 | 12 | 12 | 10 | M6 | 4.5 | 16.5 | 6 | 13 | 5.1 | ||||
| S20B-4 | SUS304 | 4 | 12 | 12 | 10 | M6 | 4.5 | 16.5 | 6 | 13 | 1 | ||||
| S20-8-B | 碳钢 | 8 | 21 | 21 | 20.5 | M12 | 9 | 33 | 12 | 23 | 37 | ||||
| S20-8-S | 碳钢 | 8 | 21 | 21 | 20.5 | M12 | 9 | 33 | 12 | 23 | 43.19 | ||||
| S20B-8 | SUS304 | 8 | 21 | 21 | 20.5 | M12 | 9 | 33 | 12 | 23 | 43.9 |
S：碳钢，镀锌
B：碳钢，黑色氧化处理
带捏手及锁紧螺母
更多信息
如有更多技术咨询，请致电
