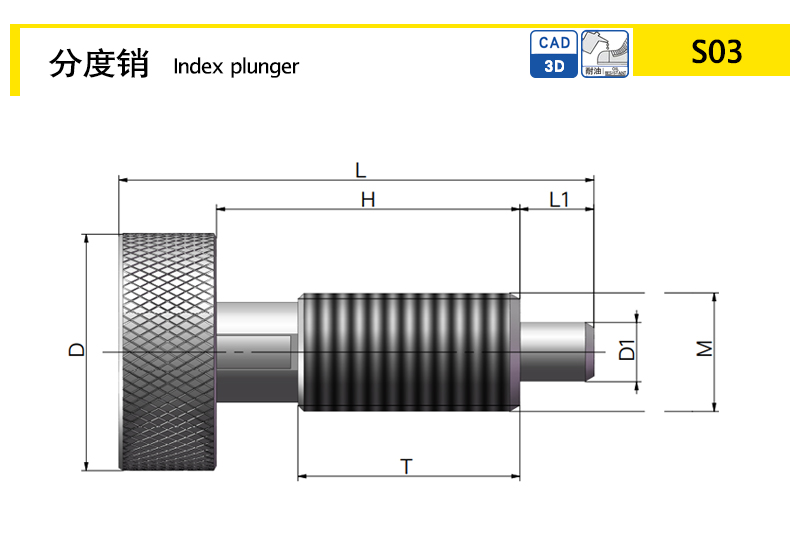

| 型号 | 材质  | D1 | D | L1 | T | M | 高度H | 重量(g) | 3D图纸 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 点击勾选 | 重置 | |||||||||||
| S03-6-S | 碳钢 | 3 | 12.7 | 3.2 | 12.7 | M6*1.0 | 15.9 | 7.5 | ||||
| S03B3-6 | SUS303 | 3 | 12.7 | 3.2 | 12.7 | M6*1.0 | 15.9 | 7.5 | ||||
| S03-8-S | 碳钢 | 4 | 15.9 | 4.8 | 15.9 | M8*1.25 | 20.7 | 15.2 | ||||
| S03B3-8 | SUS303 | 4 | 15.9 | 4.8 | 15.9 | M8*1.25 | 20.7 | 15.2 | ||||
| S03-10-S | 碳钢 | 5 | 19 | 5.55 | 19 | M10*1.5 | 24.55 | 1 | ||||
| S03B3-10 | SUS303 | 5 | 19 | 5.55 | 19 | M10*1.5 | 24.55 | 27.2 | ||||
| S03-12-S | 碳钢 | 6 | 25.4 | 6.35 | 22.2 | M12*1.75 | 28.55 | 1 | ||||
| S03B3-12 | SUS303 | 6 | 25.4 | 6.35 | 22.2 | M12*1.75 | 28.55 | 54.9 | ||||
| S03-16-S | 碳钢 | 8 | 28.6 | 7.95 | 25.4 | M16*2.0 | 33.35 | 1 | ||||
| S03B3-16 | SUS303 | 8 | 28.6 | 7.95 | 25.4 | M16*2.0 | 33.35 | 83.9 |
S：碳钢，镀锌
B：SUS303不锈钢
